Burj Al Arab
Burj Al Arab Tower of the Arabs
Architect-Tom Wills-Wright (WS Atkins),The interior was designed by Khuan Chew, Design Principal of KCA
International (London).
Date- 1994-1999
Style-Postmodern
Construction -321 m The Burj Al Arab is the world's tallest hotel. 5
stars* No. of rooms 202
Antenna/Spire 321 m (1,053 ft) Roof 210 m (689 ft)
Top floor 200 m (656 ft) Floor count 60
Floor area 111,500 m² (1,2000,000 sq ft)
Top floor 200 m (656 ft) Floor count 60
Floor area 111,500 m² (1,2000,000 sq ft)
Elevator count 18
Type-Hotel
The Burj Al Arab (Arabic: برج العرب, "Tower of the Arabs") is a luxury
hotel in Dubai, United Arab Emirates managed by the Jumeirah Group and
built by Said Khalil. It was designed by Tom Wright of WS Atkins PLC. At
321 metres (1,053 ft), it is the tallest building used exclusively as a
hotel. However, the Rose Tower, also in Dubai, which has already
topped Burj Al Arab's height, will take away this title upon its opening
in April 2008. The Burj Al Arab stands on an artificial island 280
metres (919 ft) out from Jumeirah beach, and is connected to the
mainland by a private curving bridge. It is an iconic structure,
designed to symbolize Dubai's urban transformation and to mimic the
billowing sail of a boat.
Construction
Construction of Burj Al Arab began in 1994. It was built to resemble the sail of a dhow, a type of Arabian vessel. Two "wings" spread in a V to form a vast "mast", while the space between them is enclosed in a massive atrium. Architect Tom Wright said "The client wanted a building that would become an iconic or symbolic statement for Dubai; this is very similar to Sydney with its Opera House, or Paris with the Eiffel Tower. It needed to be a building that would become synonymous with the name of the country."
The architect and engineering consultant for the project was Atkins, the UK's largest multidisciplinary consultancy. The hotel was built by South African construction contractor Murray & Roberts.The hotel cost $650 million to build.
Construction of Burj Al Arab began in 1994. It was built to resemble the sail of a dhow, a type of Arabian vessel. Two "wings" spread in a V to form a vast "mast", while the space between them is enclosed in a massive atrium. Architect Tom Wright said "The client wanted a building that would become an iconic or symbolic statement for Dubai; this is very similar to Sydney with its Opera House, or Paris with the Eiffel Tower. It needed to be a building that would become synonymous with the name of the country."
The architect and engineering consultant for the project was Atkins, the UK's largest multidisciplinary consultancy. The hotel was built by South African construction contractor Murray & Roberts.The hotel cost $650 million to build.
Features
Several features of the hotel required complex engineering feats to achieve. The hotel rests on an artificial island constructed 280 meters offshore. To secure a foundation, the builders drove 230 40-meter long concrete piles into the sand. The foundation is held in place not by bedrock, but by the friction of the sand and silt along the length of the piles.
Engineers created a surface layer of large rocks, which is circled with a concrete honey-comb pattern, which serves to protect the foundation from erosion. It took three years to reclaim the land from the sea, but less than three years to construct the building itself. The building contains over 70,000 cubic meters of concrete and 9,000 tons of steel.
Inside the building, the atrium is 180 meters (590 ft) tall. During the construction phase, to lower the interior temperature, the building was cooled by half-degree increments over a period of three to six months. This was to prevent large amounts of "condensation or in fact even a rain cloud from forming in the hotel during the period of construction." This task was accomplished by several cold air nozzles, which point down from the top of the ceiling, and blast a 1 meter cold air pocket down the inside of the sail. This creates a buffer zone, which controls the interior temperature without massive energy costs.[citations needed]
Burj Al Arab characterizes itself as the world's only "7-star" property, a designation considered by travel professionals to be hyperbole. All major travel guides and hotel rating systems have a 5-star maximum, which some hotels attempt to out-do by ascribing themselves "6-star" status. Yet according to the Burj Al Arab's official site, the hotel is a "5-star deluxe hotel". It is the world's tallest structure with a membrane façade and the world's tallest hotel (not including buildings with mixed use) and was the first 5-star hotel to surpass 1,000 ft (305 m) in height. Although it is characterized as the world's only 7-Star Hotel, several "7 Star" hotels are under construction. These include the Flower of the East under construction in Kish, Iran, The Centaurus Complex under construction in Islamabad, Pakistan and a complex planned for Metro Manila in the Philippines.
Several features of the hotel required complex engineering feats to achieve. The hotel rests on an artificial island constructed 280 meters offshore. To secure a foundation, the builders drove 230 40-meter long concrete piles into the sand. The foundation is held in place not by bedrock, but by the friction of the sand and silt along the length of the piles.
Engineers created a surface layer of large rocks, which is circled with a concrete honey-comb pattern, which serves to protect the foundation from erosion. It took three years to reclaim the land from the sea, but less than three years to construct the building itself. The building contains over 70,000 cubic meters of concrete and 9,000 tons of steel.
Inside the building, the atrium is 180 meters (590 ft) tall. During the construction phase, to lower the interior temperature, the building was cooled by half-degree increments over a period of three to six months. This was to prevent large amounts of "condensation or in fact even a rain cloud from forming in the hotel during the period of construction." This task was accomplished by several cold air nozzles, which point down from the top of the ceiling, and blast a 1 meter cold air pocket down the inside of the sail. This creates a buffer zone, which controls the interior temperature without massive energy costs.[citations needed]
Burj Al Arab characterizes itself as the world's only "7-star" property, a designation considered by travel professionals to be hyperbole. All major travel guides and hotel rating systems have a 5-star maximum, which some hotels attempt to out-do by ascribing themselves "6-star" status. Yet according to the Burj Al Arab's official site, the hotel is a "5-star deluxe hotel". It is the world's tallest structure with a membrane façade and the world's tallest hotel (not including buildings with mixed use) and was the first 5-star hotel to surpass 1,000 ft (305 m) in height. Although it is characterized as the world's only 7-Star Hotel, several "7 Star" hotels are under construction. These include the Flower of the East under construction in Kish, Iran, The Centaurus Complex under construction in Islamabad, Pakistan and a complex planned for Metro Manila in the Philippines.

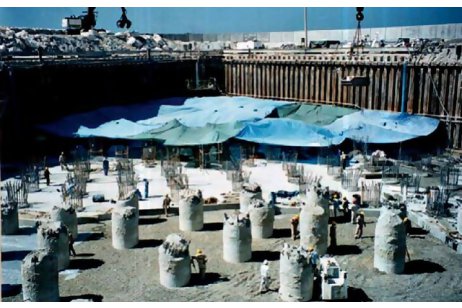

Construction photo
Base of Al Arab
Exterior
The Burj Al Arab artificial island
The building design features a steel exoskeleton wrapped around a
reinforced concrete tower. Notably the building is shaped like the sail
of a dhow, with two "wings" spread in a V to form a vast "mast". The
space between the wings is enclosed by a Teflon-coated fibreglass sail,
curving across the front of the building and creating an atrium inside.
The sail is made of a material called Dyneon, spanning over 161,000
square feet (15,000 m²), consists of two layers, and is divided into
twelve panels and installed vertically. The fabric is coated with DuPont
Teflon to protect it from harsh desert heat, wind, and dirt; as a
result, "the fabricators estimate that it will hold up for up to 50
years."
During the day, the white fabric allows a soft, milky light
inside the hotel, whereas a clear glass front would produce blinding
amounts of glare and a constantly increasing temperature. At night, both
inside and outside, the fabric is lit by color-changing lights. During
the period of mourning following the death of Sheikh Maktoum bin Rashid
Al Maktoum in January 2006, the light show and some water features were
turned off.
Near the top of the building is a suspended helipad supported by
a cantilever. The helipad has featured some of the hotel's notable
publicity events. Irish singer Ronan Keating shot his music video Iris
on the helipad. In March 2004, professional golfer Tiger Woods hit
several golf balls from the helipad into the Persian Gulf, while in
February 2005, professional tennis players Roger Federer and Andre
Agassi played an unranked game on the helipad, which was temporarily
converted into a grass tennis court, at a height of 211 meters. The
helipad has no borders or fences on the edges and if a player hit a
winner the tennis balls would plunge down to the ground.
Interior
The interior was designed by Khuan Chew, Design Principal of KCA
International. Other projects by Khuan Chew include the Sultan of
Brunei's Palace, Dubai International Airport, Jumeirah Beach Resort
Development, Madinat Resort and much more.
The Burj Al Arab features the tallest atrium lobby in the world, at 180 meters (590 ft). The atrium is formed between the building's V-shaped span. The atrium dominates the interior of the hotel, and takes up over one-third of interior space. It can accommodate the Dubai World Trade Center building, which, at 38 stories, was the tallest building in Dubai from the late 1970s to the mid-1990s.
While the exterior of the Burj Al Arab is expressed in terms of ultra-modern sculptural design, the interior guest space is a compilation of lavish and luxurious architectural styles from both the east and the west. The hotel boasts 8,000 square meters of 22-carat gold leaf and 24,000 square meters of 30 different types of marble.
In the mezzanine lobby, a fountain creates a "three-dimensional Islamic star pattern." Pointed arches throughout, found in one of the hotel’s three restaurants, corridors between guest rooms, and at the top of the atrium recall a classic Arabian architectural design form.
Restaurants
One of its restaurants, Al Muntaha (Arabic meaning "Highest" or "Ultimate"), is located 200 meters above the Persian Gulf, offering a view of Dubai. It is supported by a full cantilever that extends 27 meters from either side of the mast, and is accessed by a panoramic elevator.
Another restaurant, the Al Mahara (Arabic "The Oyster"), which is accessed via a simulated submarine voyage, features a large seawater aquarium, holding roughly 35,000 cubic feet (over one million liters) of water. The tank, made of acrylic glass in order to reduce the magnification effect, is about 18 cm (7.5 inches) thick. The restaurant was also voted among the top ten best restaurants of the world by Condé Nast Traveler. They have recently hired acclaimed chef Kevin McLaughlin.
Rooms and prices
Despite its size, the Burj Al Arab holds only 28 double-story floors which accommodate 202 bedroom suites. The smallest suite occupies an area of 169 square meters (1,819 square ft), the largest covers 780 square meters (8,396 square ft). It is one of the most expensive hotels in the world. The cost of staying in a suite begins at $1,000 per night and increases to over $15,000 per night; the Royal Suite is the most expensive, at $28,000 per night
Suites feature design details that juxtapose east and west. White Tuscan columns and a spiral staircase covered in marble with a wrought-iron gold leaf railing show influence from classicism and art nouveau. Spa-like bathrooms are accented by mosaic tile patterns on the floors and walls, with Arabian-influenced geometries, which are also found elsewhere in the building.
The Burj Al Arab features the tallest atrium lobby in the world, at 180 meters (590 ft). The atrium is formed between the building's V-shaped span. The atrium dominates the interior of the hotel, and takes up over one-third of interior space. It can accommodate the Dubai World Trade Center building, which, at 38 stories, was the tallest building in Dubai from the late 1970s to the mid-1990s.
While the exterior of the Burj Al Arab is expressed in terms of ultra-modern sculptural design, the interior guest space is a compilation of lavish and luxurious architectural styles from both the east and the west. The hotel boasts 8,000 square meters of 22-carat gold leaf and 24,000 square meters of 30 different types of marble.
In the mezzanine lobby, a fountain creates a "three-dimensional Islamic star pattern." Pointed arches throughout, found in one of the hotel’s three restaurants, corridors between guest rooms, and at the top of the atrium recall a classic Arabian architectural design form.
Restaurants
One of its restaurants, Al Muntaha (Arabic meaning "Highest" or "Ultimate"), is located 200 meters above the Persian Gulf, offering a view of Dubai. It is supported by a full cantilever that extends 27 meters from either side of the mast, and is accessed by a panoramic elevator.
Another restaurant, the Al Mahara (Arabic "The Oyster"), which is accessed via a simulated submarine voyage, features a large seawater aquarium, holding roughly 35,000 cubic feet (over one million liters) of water. The tank, made of acrylic glass in order to reduce the magnification effect, is about 18 cm (7.5 inches) thick. The restaurant was also voted among the top ten best restaurants of the world by Condé Nast Traveler. They have recently hired acclaimed chef Kevin McLaughlin.
Rooms and prices
Despite its size, the Burj Al Arab holds only 28 double-story floors which accommodate 202 bedroom suites. The smallest suite occupies an area of 169 square meters (1,819 square ft), the largest covers 780 square meters (8,396 square ft). It is one of the most expensive hotels in the world. The cost of staying in a suite begins at $1,000 per night and increases to over $15,000 per night; the Royal Suite is the most expensive, at $28,000 per night
Suites feature design details that juxtapose east and west. White Tuscan columns and a spiral staircase covered in marble with a wrought-iron gold leaf railing show influence from classicism and art nouveau. Spa-like bathrooms are accented by mosaic tile patterns on the floors and walls, with Arabian-influenced geometries, which are also found elsewhere in the building.
